DS-2CD1347G0-L(UF)

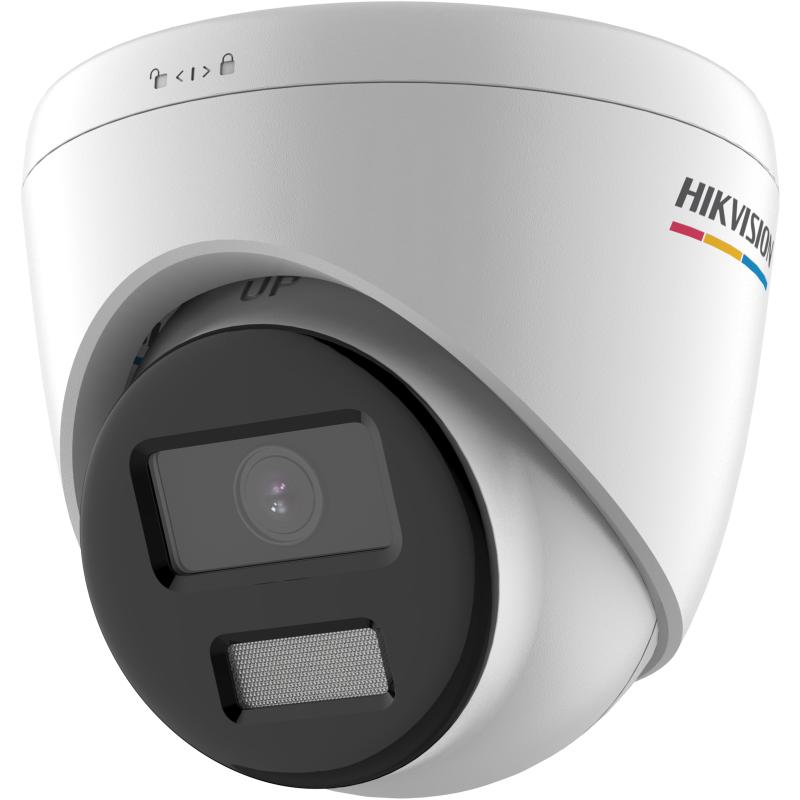

4 MP ColorVu Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • 24/7 colorful imaging

Specification

  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
  • Built-in Microphone-UF: Yes
  • Hardware Reset-UF: Yes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • General
  • Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
  • Camera MaterialMetal & Plastic
  • Camera DimensionØ109.9 mm × 103.6 mm (Ø4.33″ × 4.08″)
  • Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
  • Camera WeightApprox. 380 g (0.84 lb.)
  • With Package WeightApprox. 600 g (1.32 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
  • Web Client LanguageEnglish, Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Firmware VersionV5.5.122
  • Power Consumption and Current12 VDC, 0.4 A, max. 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
  • Power Supply12 VDC ± 25%PoE: 802.3af, Class 3
  • Power InterfaceØ5.5 mm coaxial power plug
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)
