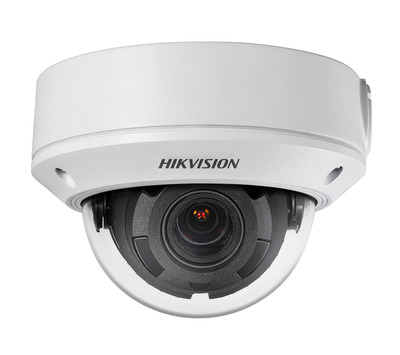

DS-2CD1723G0-I(Z)

2.0 MP VF Network Dome Camera

  •  2.54cm progressive scan CMOS
  •  3D DNR (Digital Noise Reduction)
  •  1920 × 1080@30fps
  •  Up to 30 m IR range
  •  2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens
  •  PoE (Power over Ethernet)
  •  IP67, IK10
  •  H.265+, H.265, H.264+, H.264
  •  Dual stream
  •  Digital WDR (Wide Dynamic Range

Specification

Camera

  • Image Sensor2.54cm progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
  • Slow ShutterYes
  • Auto-IrisNo
  • Day &NightIR cut filter
  • Digital Noise Reduction3D DNR
  • WDRDigital WDR
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°

Lens

  • Focal length2.8 to 12 mm
  • ApertureF1.6 Focus -I: Manual -IZ: Auto
  • FOVHorizontal field of view: 98° to 34° Vertical field of view: 52° to 19° Diagonal field of view: 116° to 40°
  • Lens MountΦ14

IR

  • IR RangeUp to 30 m
  • Wavelength850 nm

Compression

  • Standard Video CompressionMain stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.264+Main stream supports
  • H.265 TypeMain Profile
  • H.265+Main stream supports
  • Video Bit Rate32 Kbps to 8 Mbps

Smart Feature-set

  • Region of Interest1 fixed region for main stream and sub-stream


  • Max. Resolution1920 × 1080
  • Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-stream
  • Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, scheduled

Network

  • Network Storage SupportMicro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
  • ProtocolsTCP/IP, ICMP, HTTP, HTTP 802.1X, QoS, IPv6, UDP, Bonjour
  • General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Firmware Version5.5.2 API ONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live View UpUp to 6 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Interface

  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Video Output (Without -Z)1Vp-p composite output (75 Ω/BNC)

General

  • Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
  • Power Consumption and Current-IZ: 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W -I: 12 VDC, 0.5 A, Max: 6 W; PoE: (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, Max: 8 W
  • Protection LevelIP67, IK10 TVS 2000V lightning protection, surge protection and voltage transient protection
  • MaterialMetal & Plastic
  • DimensionsCamera: Φ 141 mm × 99.9 mm (5.6inch × 3.9inch) With package: 140 mm × 140 mm × 154 mm (5.5inch × 5.5inch × 6.1inch)
  • WeightCamera: Approx. 830 g (1.8 lb.) With package: Approx. 1070 g (2.4 lb.)
