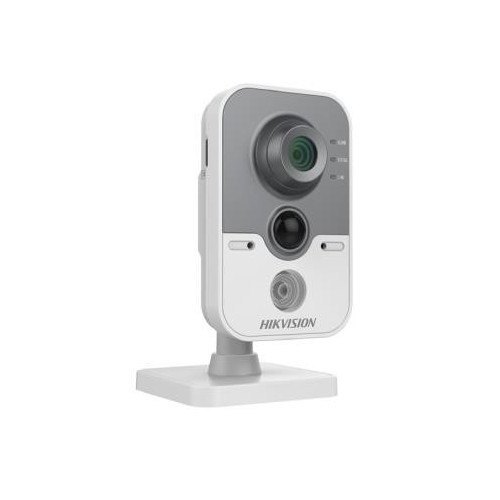

4.0 MP WDR Network Cube Camera
- Up to 4.0 megapixel high resolution
- Two video streams
- 2.8mm/2mm/4mm fixed lens
- 120 dB Wide Dynamic Range
- 3D Digital Noise Reduction
- Support on-board storage, up to 128GB
- Build-in microphone and speaker, supporttwo-way audio
- 12 VDC & PoE (802.3af)
- Up to 10 m IR range
- Alarm I/O
- Support PIR (Passive Infrared Detection)
- Built-in Wi-Fi
- Mobile Monitoring via Hik-Connect
Specification
Camera
- Image Sensor2.54cm (1/2.8inch) Progressive Scan CMOS
- Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Lens2.8 mm, horizontal field of view 105.8° [2.0 mm (126°), 4 mm (83°), optional]
- Lens MountM12
- Day &NightIR cut filter with auto switch
- Digital Noise Reduction3D DNR
- Wide Dynamic Range120dB
Compression Standard
- Video CompressionH.264/MJPEG/H.264+
- H.264 TypeBaseLine Profile/Main Profile
- Video Bit Rate32 Kbps – 8 Mbps
- Dual StreamsSupport
- Audio CompressionG.711/G.722.1/G.726/MP2L2
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
- Max. Resolution2688 × 1520
- Max. Frame RateMain Stream 50Hz: 20fps (2688 × 1520), 25fps (1920 × 1080, 1280×720) 60Hz: 20fps (2688 × 1520), 30fps (1920 × 1080, 1280×720) Sub Stream 50Hz: 20fps (640 × 360, 352 × 288) 60Hz: 15fps (640 × 360, 352 × 240)
- Image SettingsSupport rotate mode, brightness, saturation, sharpness, contrast are adjustable via web browser and client software
- Day/Night SwitchSupport auto, scheduled, and triggered by alarm input
- OthersMirror, Wide Dynamic Range (WDR), (Backlight Compensation)BLC, (Region of Interest) ROI
Network
- Network StorageSupport Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR
- DetectionIntrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis
- Face DetectionDetects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info
- Alarm TriggerTampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
- StandardONVIF (PROFILE S, PROFILE G), ISAPI
- General FunctionOne-key reset, Anti-flicker, Dual Streams, Heartbeat, Password Protection, Privacy Mask, Watermark, IP Address Filtering
Interface
- Communication Interface1 RJ45 10M/100M Ethernet port
- On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128GB
- Audio1build-in Mic, 1 build-in speaker
- Alarm1 alarm input, 1 alarm output
- ResetYes
Wi-Fi
- Wireless StandardsIEEE802.11b, 802.11g, 802.11n
- Frequency Range2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth20/40MHz Support
- Protocols802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
- Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Transmit Output Power11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm
- Reception Sensitivity11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical)
- Transfer Rates11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
- Wireless Range50 meters (The performance varies based on actual environment)
General
- Operating Conditions-10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, PoE (802.3af)
- Power ConsumptionMax. 5W
- PIRAngle: 90°, Range: 8m
- IR RangeApprox. 10 meters
- Dimensions2.8mm, 4mm lens: 72.3 × 91.9 × 131.3mm (2.85inch × 3.62inch× 5.17inch) 2mm lens: 72.3 × 88.6 × 131.3mm (2.85inch × 3.49inch× 5.17inch)
- MaterialPlastic
- Weight400g (0.88lbs)
