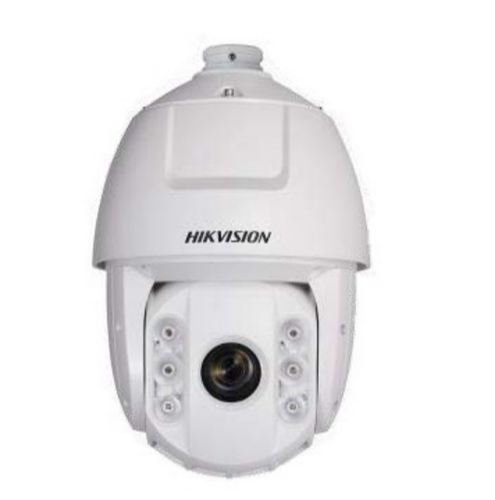

2MP 30× Network IR Speed Dome
2.54cm(1/2.8”) Progressive Scan CMOS
Up to 1920 × 1080 resolution
30× Optical Zoom, 16× Digital Zoom
Digital WDR
3D intelligent positioning function
Up to 180 m IR distance
Hi-PoE/24 VAC power supply
Support H.265 video compression
Specification
Camera
Image Sensor2.54cm(1/2.8”) progressive scan CMOS
Min. IlluminationColor: 0.05Lux @(F1.5, AGC ON) B/W: 0.01Lux @(F1.5, AGC ON) 0 Lux with IR
White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent lamp/Sodium lamp
AGCAuto/Manual
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy MaskPrivacy Mask
Focus ModeAuto/Semi-automatic/Manual
3D DNRSupport
SupportSupport
WDRDigital WDR
HLCSupport
DefogSupport
Lens
Focal Length4.3 mm to 129 mm, 30× Optical
Zoom SpeedApprox. 3 s (optical lens, wide-tele)
Field of View65.5° to 2.11° (wide-tele)
Working Distance10 mm to 1000 mm (wide-tele)
Aperture RangeF1.6 to F5.0
IR
IR DistanceUp to 180 m
IR IntensityAutomatically adjusted, depending on the zoom ratio
PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s
Movement Range (Tilt)From -15° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
Scheduled TaskAuto Scan/Frame Scan/Random Scan/Patrol/Pattern/Preset/Panorama Scan/Tilt Scan/Dome Reboot/Dome Adjust/Aux Output
Features
DetectionIntrusion Detection, Line Crossing Detection
ROI encodingMain stream, sub-stream and third stream respectively support two fixed areas
Network
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG H.264 with Baseline/Main/High Profile
Audio compressionG.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users 3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
System Integration
Alarm Input2-ch alarm input
Alarm Output1-ch alarm output
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface10 Base-T/100 Base-TX, RJ45 connector
StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
APIOpen-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform
ClientiVMS-4200, iVMS-4500, iVMS-5200
Web BrowserIE7+, Chrome18+, Firefox5.0+, Safari5.02+
General
Power24 VAC and Hi-PoE Max.: 40 W
Working Temperature-30°C to 65°C (-22°F to 149°F)
Working Humidity≤ 90%
Protection LevelIP66,IK10 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions(mm)Φ 220 mm × 353.4 mm (Φ 21.99cm(8.66″) × 35.33cm(13.91″))
Weight Approx.4.5 kg (9.92 lb)
