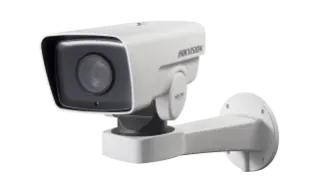

DS-2DY3320IW-DE(4)

By /

3MP Network IR PTZ Camera

  • 1/2.8″ Progressive Scan CMOS
  • Up to 2048 × 1536 resolution
  • 20× Optical Zoom, 16× Digital Zoom
  • Digital WDR, 3D DNR, HLC, Smart IR
  • Up to 100 m IR distance
  • 12 VDC & PoE (802.3at, class4)
  • Support H.265 video compression

Specification

Camera Module

  • Image Sensor1/2.8″ progressive scan CMOS
  • Min. IlluminationColor: 0.05 Lux @(F1.6, AGC ON) B/W: 0.01 Lux @(F1.6, AGC ON) 0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • AGCAuto/Manual
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semi-automatic/Manual
  • 3D DNRSupport
  • BLCSupport
  • Digital WDRSupport
  • Regional ExposureSupport
  • Regional FocusSupport

Lens

  • Focal Length4.7 mm to 94 mm, 20× Optical
  • Zoom SpeedApprox. 2.7 s (Optical Lens, Wide-Tele)
  • Field of View58.3° to 3.2° (Wide-Tele)
  • Working Distance10 mm to 1500mm (Wide-Tele)
  • Aperture RangeF1.6 to F3.5

IR

  • IR DistanceUp to 100 m
  • IR IntensityAutomatically adjusted, depending on the zoom ratio

PTZ

  • Movement Range (Pan)360° endless
  • Pan SpeedConfigurable, from 0.1°/s to 60°/s
  • Movement Range (Tilt)From -40° to 30°
  • Tilt SpeedConfigurable, from 0.1°/s to 30°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol Scan 8patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Power-off Memory:Support
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Position DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust

Features

  • Smart DetectionIntrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection
  • ROI encodingMain stream, sub-stream and third stream respectively support two fixed areas.

Network

  • Max. Resolution2048 × 1536
  • Main Stream50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG H.264 with Baseline/Main/High Profile
  • Audio compressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users 3 levels: Administrator, Operator and User
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

System Integration

  • Alarm Input1-ch alarm input Alarm Output 1-ch alarm output
  • Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
  • StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • ClientiVMS-4200, iVMS-4500, iVMS-5200
  • Web BrowserIE7+, Chrome18+, Firefox5.0+, Safari5.02+

General

  • Power12 VDC & PoE (802.3at, class4) Max.: 19 W
  • Working EnvironmentWorking Temperature: Outdoor: -30°C to 65°C (-22°F to 149°F) Working Humidity: ≤ 90%
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions(mm)-DE: 367 mm × 122 mm × 242 mm (14.45″ × 4.80″ × 9.53″) -DE4: 255 mm × 129 mm × 195 mm (10.03″ × 5.08″ × 7.68″)
  • WeightApprox. 3 kg (6.61 lb)
