- 1080p Resolution
- Audio Pick-Up
- Color Night Vision
- Active Defense with Strobe Light
- IP67 Weatherproof Design
- Smart Integration with Google Assistant, Amazon Alexa & IFTTT
- AI-Powered Human Shape Detection
- Supports MicroSD Card1 (Up to 512 GB)
- H.265 Video Technology
- Supports EZVIZ CloudPlay Storage2
Specification
Camera
- Image Sensor : 1/2.7”Progressive Scan CMOS
- Minimum Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- IR Night Vision Distance : Up to 98 ft / 30 m
- Shutter Speed : Self-adaptive shutter
- Lens : 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
- Lens Mount : M12
- DNR : 3D DNR
- WDR : Digital WDR
- Day / Night Switch : IR-Cut filter with auto-switching
Video & Audio
- Max. Resolution : 1080p, 1920 × 1080
- Frame Rate : Max: 30fps; Self-Adaptive during network transmission
- Video Compression : H.265 / H.264
- Video Bit Rate : Full HD; HD; Standard. Adaptive bit rate.
- Audio Bit Rate : Self-Adaptive
- Max. Bitrate : 2 Mbps
Network
- Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
- Frequency Range : 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth : Supports 20 MHz
- Security : 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
- Wi-Fi Pairing : AP Pairing
- Protocol : EZVIZ Cloud Proprietary Protocol
- Interface Protocol : EZVIZ Cloud Proprietary Protocol
- Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
General
- Dimensions : 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)
- Package Dimensions : 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
- Weight : Net weight: 250 g (8.82 oz) With Package: 447 g (15.77 oz)
- IP Grade : IP67
- Operating Conditions : -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
Function
- Detection : AI-Powered Human Shape Detection, Motion Detection
- Customized Alert Area : Supports
- Integration : Works with Alexa, Google Assistant, IFTTT
- General Function : Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
- Local Storage : Supports microSD card (Up to 512 GB)
- Cloud Storage : Supports EZVIZ CloudPlay storage (Subscription required)
Power
- Power Supply : DC 12V / 1A
- Power Consumption : Max. 6W
In the box

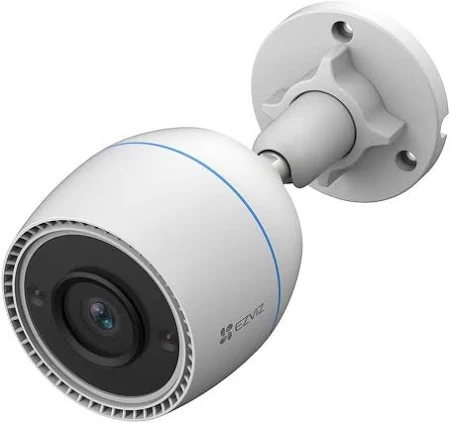

- H3c Color Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications:
- CE / FCC / UKCA / UL / WEEE / RoHS / REACH
